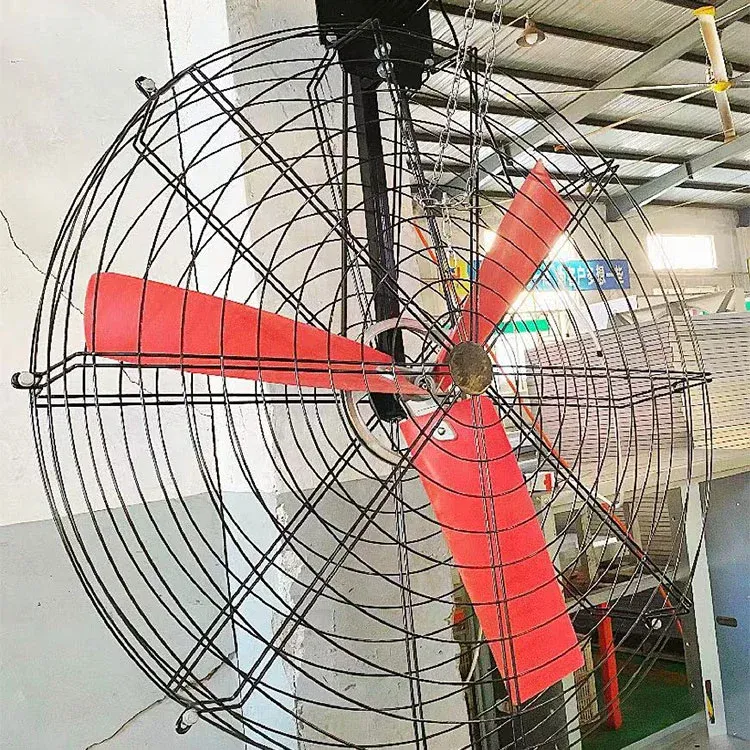

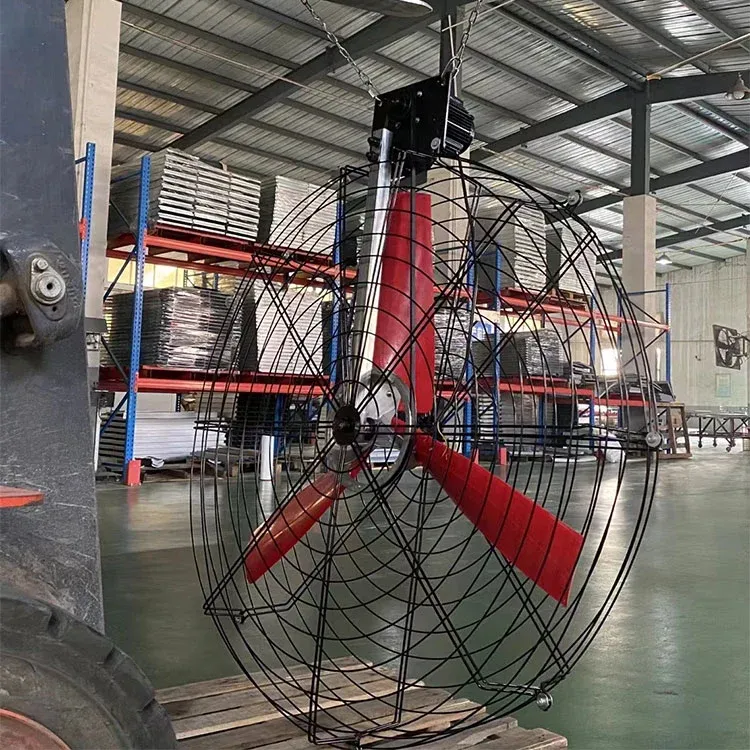

The fan is round, and the double-sided circular mesh is made of plastic sprayed steel wire.
Blade diameter 1270 mm. The leaves are 3 pieces and the material is nylon.
Fan size: height (including motor) is about 1680 mm, width is about 1460 mm, depth is about 300mm.
The motor is placed on top of the fan. Three-phase, 380V, 0. 75 kilowatts, 50 Hertz. Belt drive.
The air volume is about 36, 000 cubic meters/hour.
Cow farm ventilation and cooling.
| Model |
Blade Dia (mm) |
Power (kw) |
Volts (v) |
Frequency (hz) |
Air Volume (m3/h) |
Noise (db) |
Size (mm) |
| JFD-YN-1270 | 1270 | 0.75 | 380 | 50 | 36000 | 70 | 1680*1460*300 |
